A pneumatic pincher grip is a special gripping device used in tensile testing machines to securely hold small test specimens during mechanical testing.
This grip is designed to mount on a standard 5/8' eye end. This connection type is commonly used on
Lloyd Instruments,
Chatillon, and
Mark-10 equipment. We also sell these brands of
test stands,
load cells, and
force gauges to use with our grips and fixtures. Adapters are available to accommodate other connection types and sizes.
Features and Specifications
- Tensile force: 1 kN
- Clamping force: 2 kN (horizontal) at 7 bar
- Opening: 0-6 mm
- Jaws: Pyramid (serrated) jaws
- Clamping Surface: 5x5 mm
- Material: Anodized aluminum
- Temperature range: -10 … +70°C
- Grip weight: 0.8 kg
-
Connection : 15.9 mm (5/8') female eye end - Adapters for other sizes
Included Items
- (1) Pneumatic pincher grip with pyramid jaw faces.

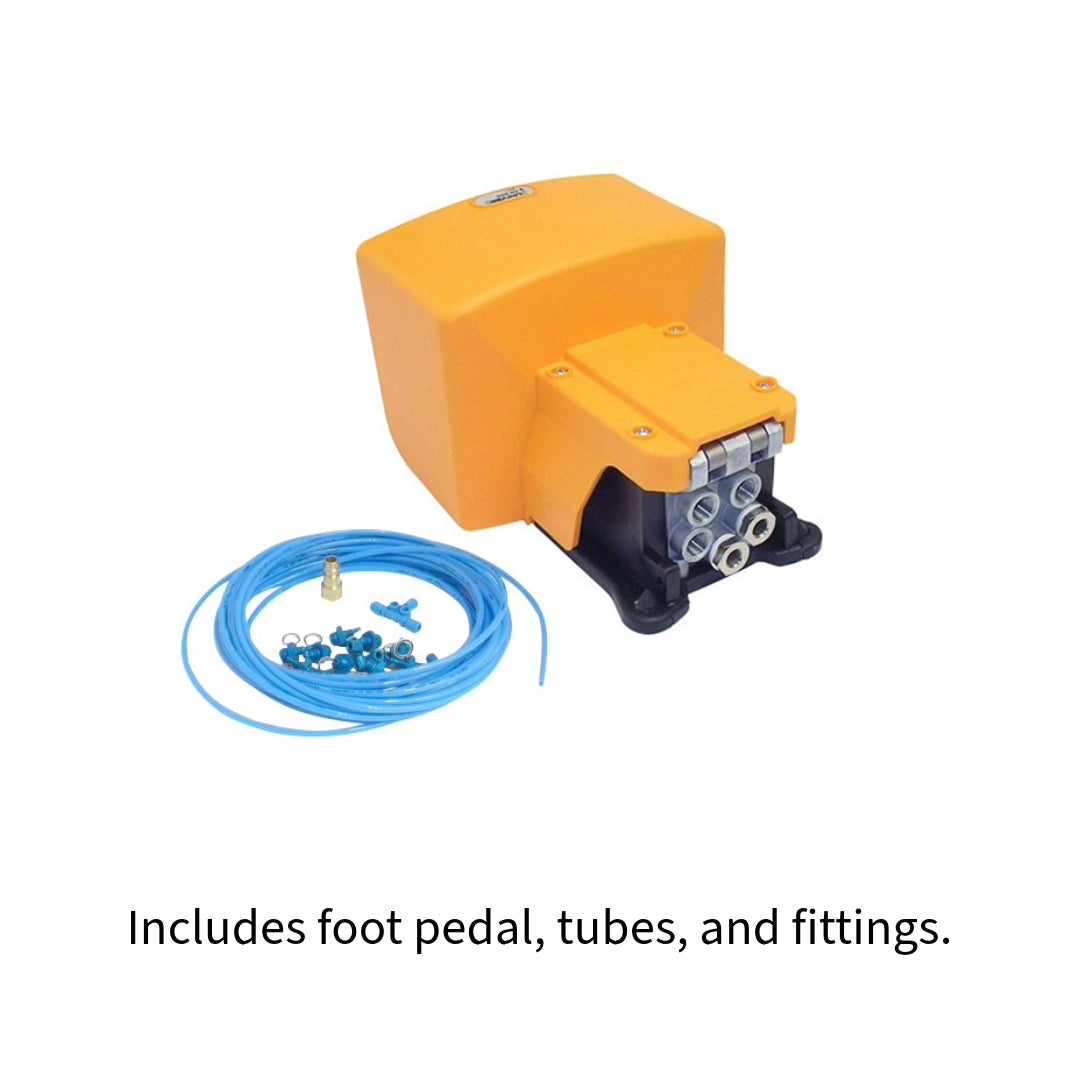

- (1) Foot pedal control with tube and fittings.

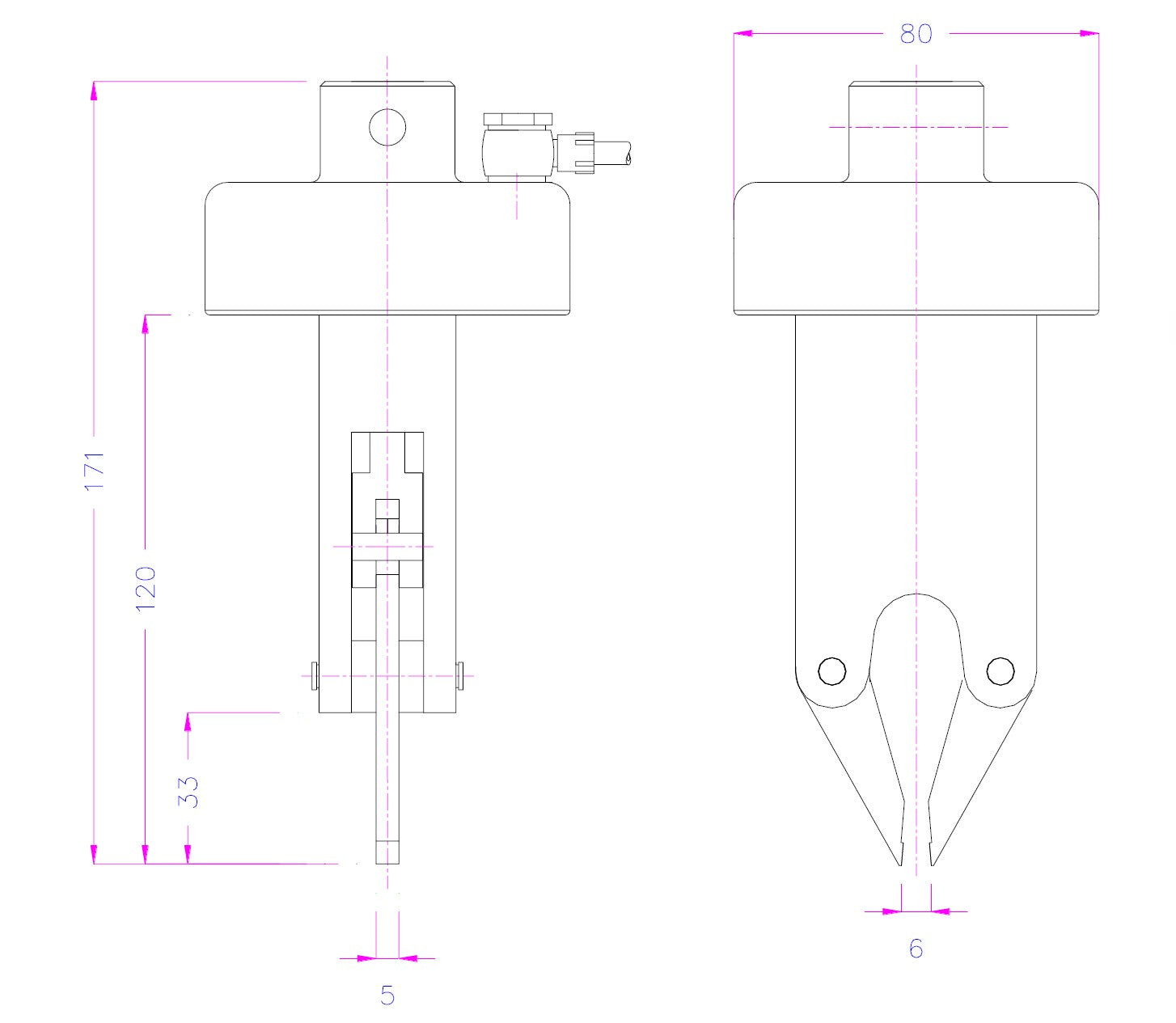

Dimensions - mm
